300 ml OVAL CONTAINER WITH LID
These 300 ml oval plastic containers with beautiful designs of IML labels with tamper evident packaging are used in the ice cream industry, confectionery, sweets, dry fruits, bakery products and many more.

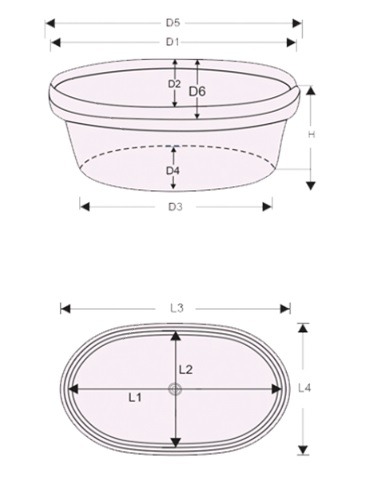

Specification
| S. No. | Parameter (Container) | Unit | Standard Value | Tolerance (+/-) |
| 1 | Volume of closed container with lid | ml | 375 | 10 |
| 2 | Gross Volume of container | ml | 400 | 10 |
| 3 | Weight of container | gm | 18 | 2 |
| 4 | Top Diameter (X-Axis) (Internal) | mm | 111.5 | 1 |
| 5 | Top Diameter (Y-axis) (Internal) | mm | 70.5 | 1 |
| 6 | Bottom Diameter X-Axis (External) | mm | 101.5 | 1 |
| 7 | Bottom Diameter Y-Axis (External) | mm | 61 | 1 |
| 8 | Total length (X-axis) (External) | mm | 120.5 | 1 |
| 9 | Total length (Y-axis) (External) | mm | 79.5 | 1 |
| 10 | Thickness | mm | 0.65 | 0.15 |
| 11 | Height | mm | 74 | 1 |
| Parameter (Lid) | ||||
| 1 | Diameter X-Axis (External max.) | mm | 117.4 | 1 |
| 2 | Diameter Y-Axis (External max.) | mm | 77 | 1 |
| 3 | Height | mm | 7 | 0.2 |
| 4 | Weight of lid | gm | 5.2 | 0.5 |
| 5 | Thickness of Lid | mm | 0.6 | 1 |
